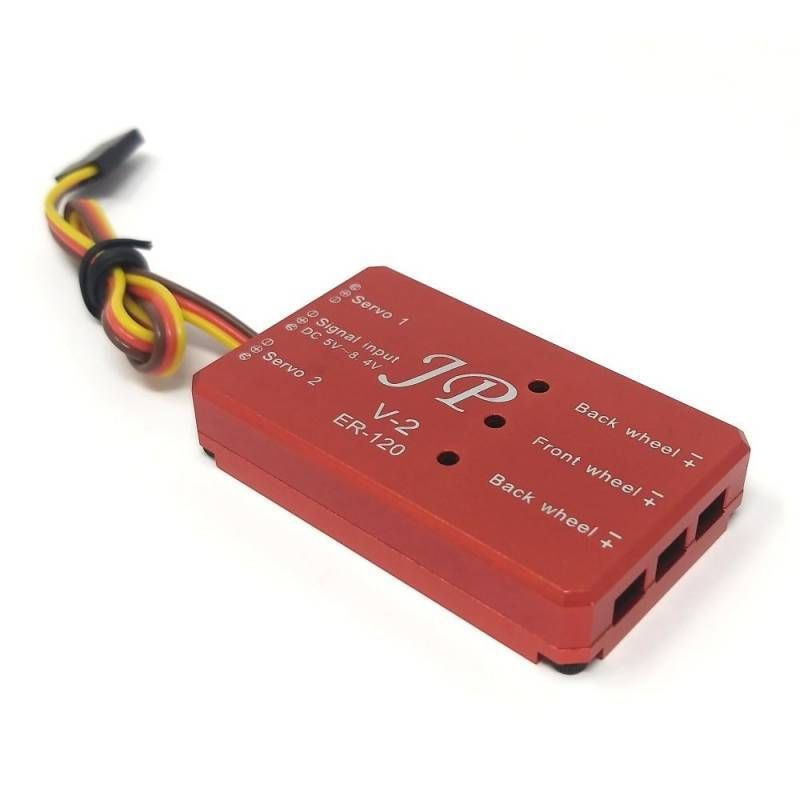

JP Hobby Dreirad-Controller Retract Box ER-120 V2 (HV)
Produktbeschreibung
Marke: JP Hobby
Version 2 schließt die Türen, wenn das Fahrwerk ausgefahren ist, während Version 1 die Türen offen hält. Dieser elektronische Schalter wird verwendet, um die Reihenfolge der elektrischen Einzug von Ihrem Sender Getriebe Kanalschalter zu steuern. Es ist ein Ersatz-Steuergerät für die JP Hobby elektrischen Einziehfahrwerke.
Data sheet
| Serial | JP Hobby ER-005 (6kg), JP Hobby ER-010 (10kg), JP Hobby ER-120 (12kg) |
| Sizes: | 52 x 32 x 10 mm |
| Weight (gr): | 22 gr |
| Working voltage (Volts): | 7.4v - 8.4v (2s) |
| Connection: | JR / Graupner / Futaba |
More info
JP Hobby Tricycle Sequencer Retract Box ER-120 V2 (HV)
This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.
This version equiped with a 2s plug.
WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type .
Note: Version 2 closes the doors when the gear is down while version 1 keep the doors open.
Connections
- Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
- Connect the doors servos to the "Servo 1" and "Servo 2" plugs
- Connect the "signal input" wire and plug to your receiver "gear" channel
- Plug a 2s battery
Specifications
- Input voltage: 7.4V to 8.4V
- Size: 52 x 32 x 10 mm
- Weight: 22 gr
