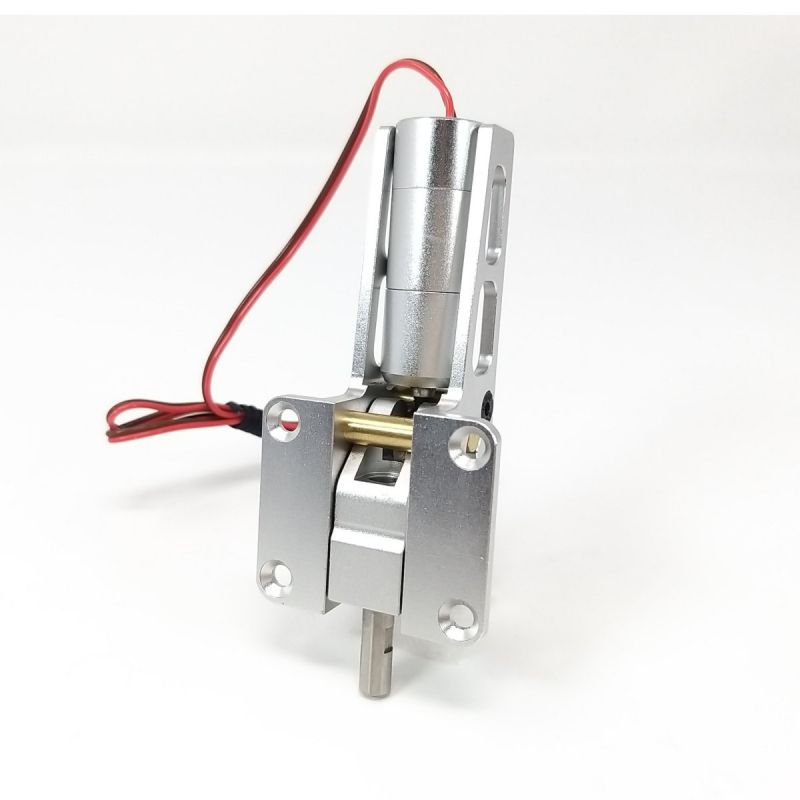

JP Hobby Electric Retract ER-005 6mm 85° (6kg/Low/Outside)
Produktbeschreibung
Marke: JP Hobby
Electric Main Retract ER-005 5mm 85°
> Model Weight: until 6kg (7-8kg possible)
> Struts diameter: 10mm - Pin Diameter Size: 6mm
> Angle: 85 degrees
> Rotation direction: Outside (opposite jack side)
> Mounting: Low
Data sheet
| Serial | JP Hobby ER-005 (6kg) |
| Strut(s) Diameter(s) (mm): | 10mm (axle 6mm) |
| Weight (gr): | 63 |
| Max weight | Up to 6kg |
| Torque | 12kg/cm |
| Rotation angle | 85° |
| Rotation direction | Outside (opposite jack) |
| Working voltage (Volts): | 5 to 6.4v |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
More info
JP Hobby ER-005 5mm 85° electric main retract for 10mm oleo struts for models up to 6kg (Mounting position Low and opposite jack side rotation)
Electric 100% CNC aluminium main retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 6mm diameter in the upper part. 85° outside rotation angle (opposite jack side) and mounting position Low.
Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.
Note: These Allow retracts are provided for the oleo strut ER-005 or equivalent with a 5mm diameter in the upper part.
Specifications
- Material: Aluminium
- Struts diameter: 10mm
- Pin Diameter Size: 6mm
- For plane: up to 6 kg (possible 7-8kg)
Technical Specifications
- Retractation angle: 85°
- Retract weight: 63g
- Retract sizes: 26mm x 73mm x 18mm
- Retract mounting plate sizes: 33mm x 37mm
- Length with motor: 74mm
- Working Voltage: 5-6.4V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Contents
- 1x Main Retract JP Hobby ER-005 6mm unit (6kg/Low/Outside)
Requires
- JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
