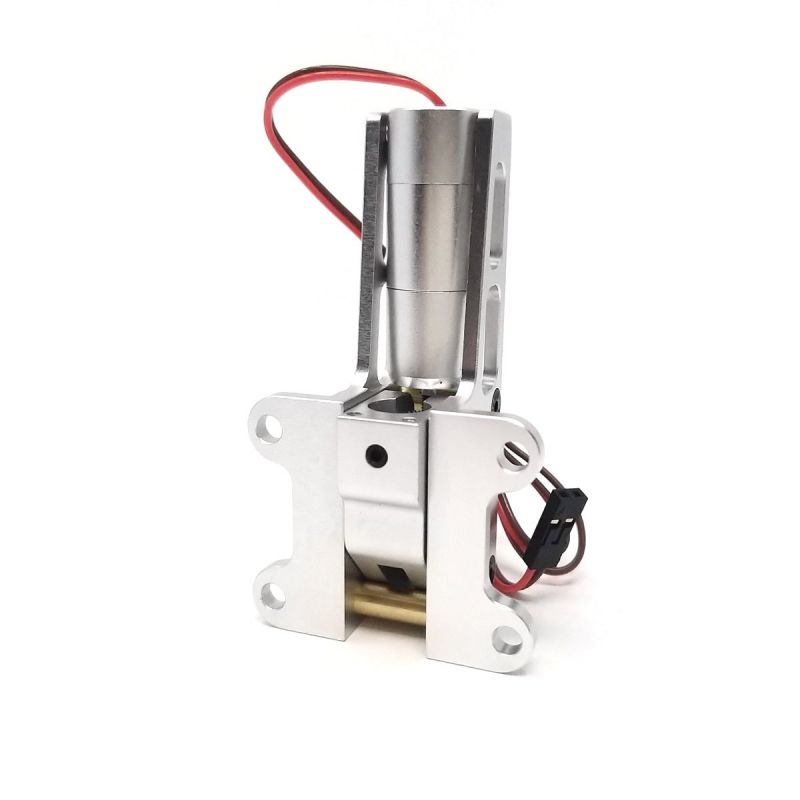

JP Hobby Electric Retract ER-008 9mm (9kg/Low/Inside)
Produktbeschreibung
Marke: JP Hobby
Electric Main Retract ER-008
> Model Weight: until 8kg
> Struts diameter: 9mm (6mm adapter in option)
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low
Data sheet
| Serial | JP Hobby ER-008 (9kg) |
| Weight (gr): | 68.5 |
| Max weight | Up to 8kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Inside (jack side) |
| Working voltage (Volts): | 5 to 6.4v |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
More info
JP Hobby ER-008 electric main retract for oleo struts for planes up to 8kg (Mounting position low and jack side rotation)
Electric 100% CNC aluminium main retract for planes up to 8kg for JP Hobby oleo struts ER-008 or equivalent 9mm drilled with a diameter of 6mm (with adapter in option). 90% inside rotation angle (jack side) and mounting position low.
Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.
Specifications
- Material: Aluminium
- Struts diameter for mouting on retract : 9mm (or strut drilled with a 6mm with adapter in option)
- For plane: up to 8kg
Technical Specifications
- Retract weight: 68.5g
- Retract sizes: 24mm x 36.2mm x 19mm
- Retract mounting plate sizes: 36.2mm x 46.2mm
- Length with motor: 75.4mm
- Working Voltage: 5-6V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Contents
- 1x Main Retract JP Hobby ER-008 9mm unit (8kg/Low/Inside)
Requires
- JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
