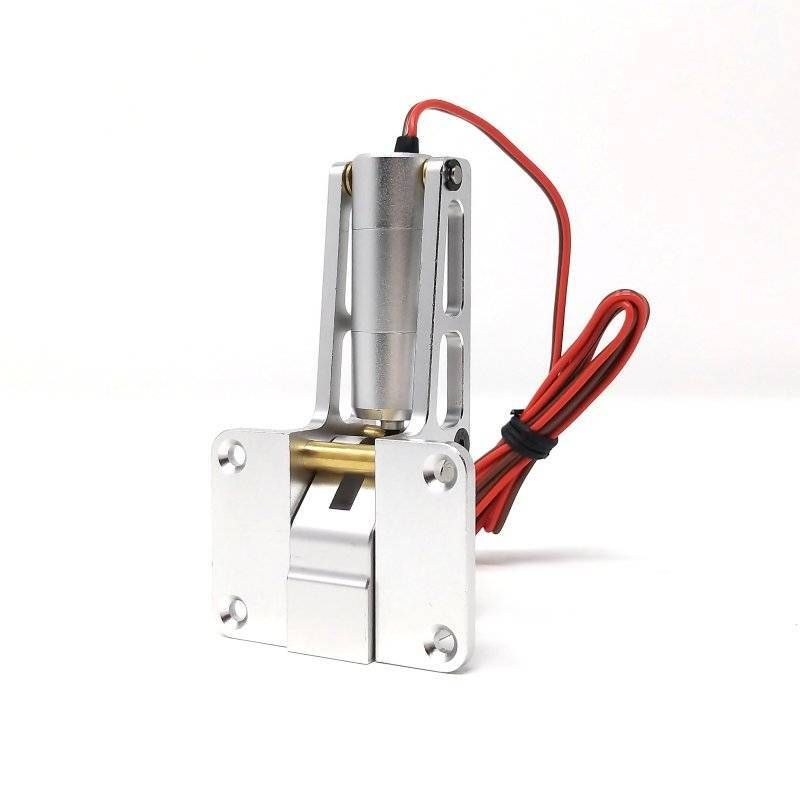

JP Hobby Elektrisches Einziehfahrwerk ER-010 / ER-120 10/12mm (12kg/Low/Outside)
Produktbeschreibung
Marke: JP Hobby
Elektrisches Einziehfahrwerk für Flugzeuge bis zu 12kg (10kg für ER-010 oleo struts) für JP Hobby oleo struts ER-010-120 oder gleichwertig 10-12mm.
Specifications
- Material: Aluminium
- For plane: up to 12kg (10kg for ER-010 oleo struts)
Technical Specifications
- Struts diameter: 12mm (adapter 10mm)
- Retract weight: 84g
- Retract sizes: 27mm x 80mm x 22mm
- Retract mounting plate sizes: 35mm x 48mm
- Working Voltage: 5 - 8.4V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Data sheet
| Serial | JP Hobby ER-010 (10kg), JP Hobby ER-120 (12kg) |
| Mounting diameter (mm): | 10, 12 |
| Strut(s) Diameter(s) (mm): | 10, 12 |
| Weight (gr): | 84 gr |
| Max weight | Up to 12kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Outside (opposite jack) |
| Working voltage (Volts): | 5 to 8.4v (2s LiPo recommended) |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
