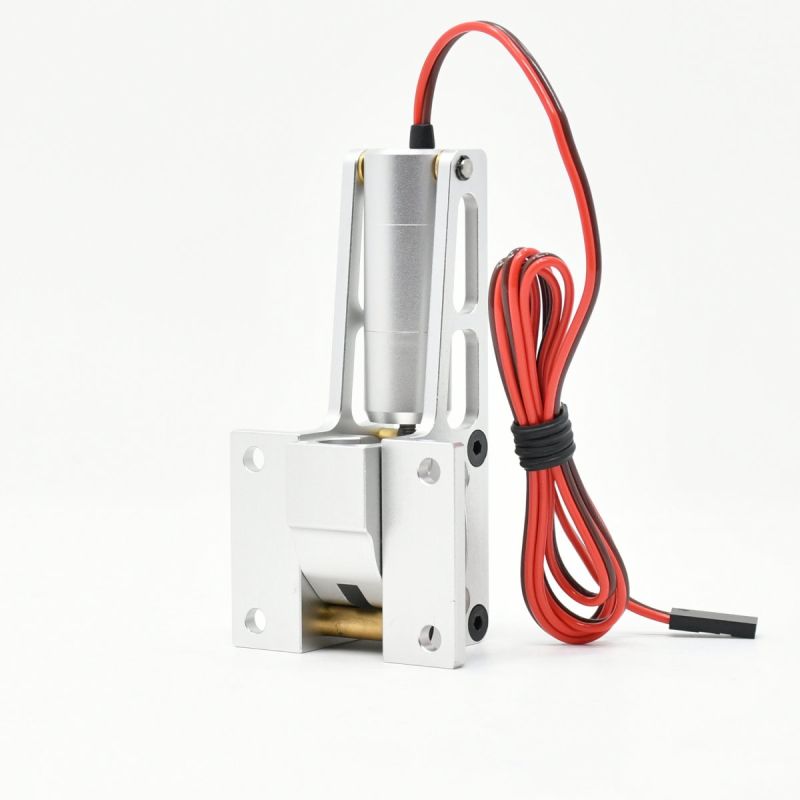

JP Hobby Elektrisches Einziehfahrwerk ER-120 11mm (12kg/Low/Inside) (Thin version)
Produktbeschreibung
Marke: JP Hobby
Electric Retract ER-120 11mm (Thin version)
> Model Weight: until 12kg
> Struts diameter: 11mm
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low
Data sheet
| Serial | JP Hobby ER-120 (12kg) |
| Strut(s) Diameter(s) (mm): | 11 |
| Weight (gr): | 78 gr |
| Max weight | Up to 12kg |
| Torque | 12kg/cm |
| Rotation angle | 90° |
| Rotation direction | Inside (jack side) |
| Working voltage (Volts): | 5 to 8.4v (2s LiPo recommended) |
| Connection: | JP Hobby JST type plug (+/-) for JP Hobby retracts |
| Material | Aluminium |
| Mounting | Low |
More info
JP Hobby ER-120 Allow Electric Retract (Inside) for models up to 12kg (Thin version)
Electric 100% CNC allow retract for planes up to 12kg for JP Hobby oleo struts ER-120 or equivalent 11mm.
The "thin" version of the retracts allows mounting in thinner wings.
Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.
Specifications
- Material: Aluminium
- For plane: up to 12kg
Technical Specifications
- Struts diameter: 11mm
- Retract weight: 78g
- Retract sizes: 27mm x 80mm x 21mm
- Retract mounting plate sizes: 35mm x 43mm
- Working Voltage: 5 - 8.4V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Contents
- 1x Retract JP Hobby ER-120 unit 11mm (12kg/Low/Inside)
Requires
- JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
