JP Hobby ER-120 12mm Scale Metal Oleo Struts (E-Flite Hangar 9 MB-339 2.13 / Black Horse Viper 2m or L-39 1.72m)
Produktbeschreibung
Marke: JP Hobby
Main and Nose gear struts ER-120
> Model Weight: until 12kg
> Struts diameter: 12mm
> Mounting struts diameter: 12mm
> Mounting wheels diameter: 5mm
Data sheet
| Serial | JP Hobby ER-120 (12kg) |
| Mounting diameter (mm): | 12 |
| Strut(s) Diameter(s) (mm): | 12 |
| Wheel(s) axle(s) diameter(s) (mm) | 5 |
| Weight (gr): | 220 gr |
| Max weight | Up to 12kg |
| Material | Aluminium |
More info
JP Hobby ER-120 12mm Scale Metal Oleo Struts (incl. single nose strut) (E-Flite Hangar 9 Aermacchi MB-339 2.13m or Black Horse Viper 2m or L-39 1.72m or planes up to 12kg)
CNC Machined Aluminum articulated and mechanical suspended landing gear. Main gear and single nose gear for Hangar 9 MB-339 2.13 / Black Horse Viper 2m or L-39 1.72m or models up to 12kg.
Important Information: The JP Hobby landing gear struts are intended for use only with other JP Hobby landing gear parts. Please check compatibility with other brands if applicable.
Specifications
- Materials: Aluminium
- Suspension: mechanical
- Model Weight: until 12kg
- Struts diameter: 12mm
- Mounting struts diameter: 12mm
- Length Main gear: 129mm (Under the trunnion to the center of the wheel axle)
- Length Nose gear: 141mm (Under the trunnion to the center of the wheel axle)
- Diameter max. main wheels: 65mm
- Diameter max. front wheel: 65mm
- Mounting wheels diameter: 5mm (Main & Front)
- Weight: 220gr (for the 3 gears)
- Dimensions: for detailed dimensions, please refer to the pictures
Content

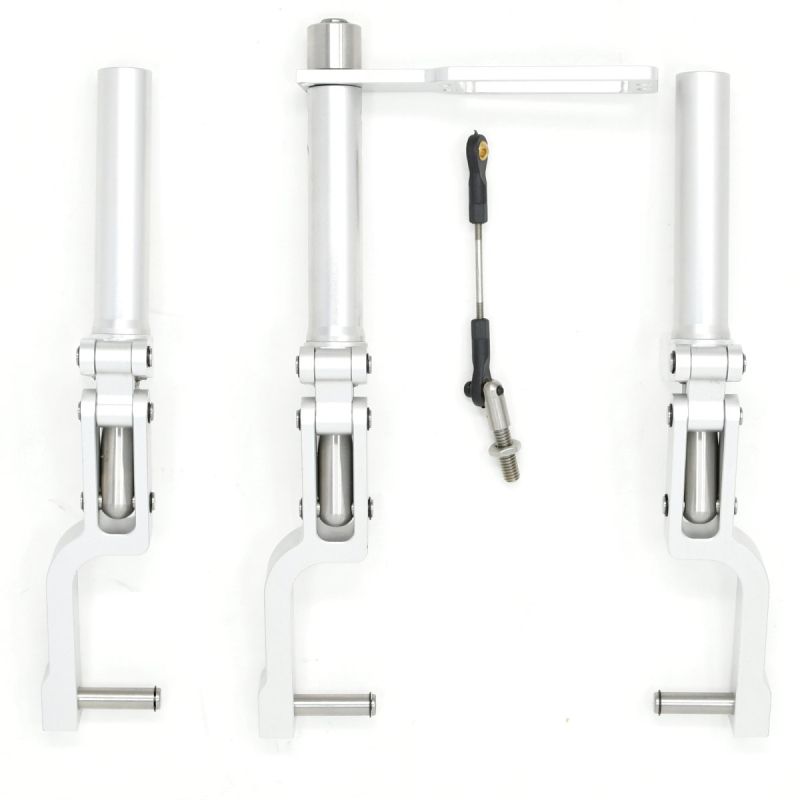

- 2x Scale metal struts for main landing gear
- 1x Scale metal strut nose gear + servo plate
