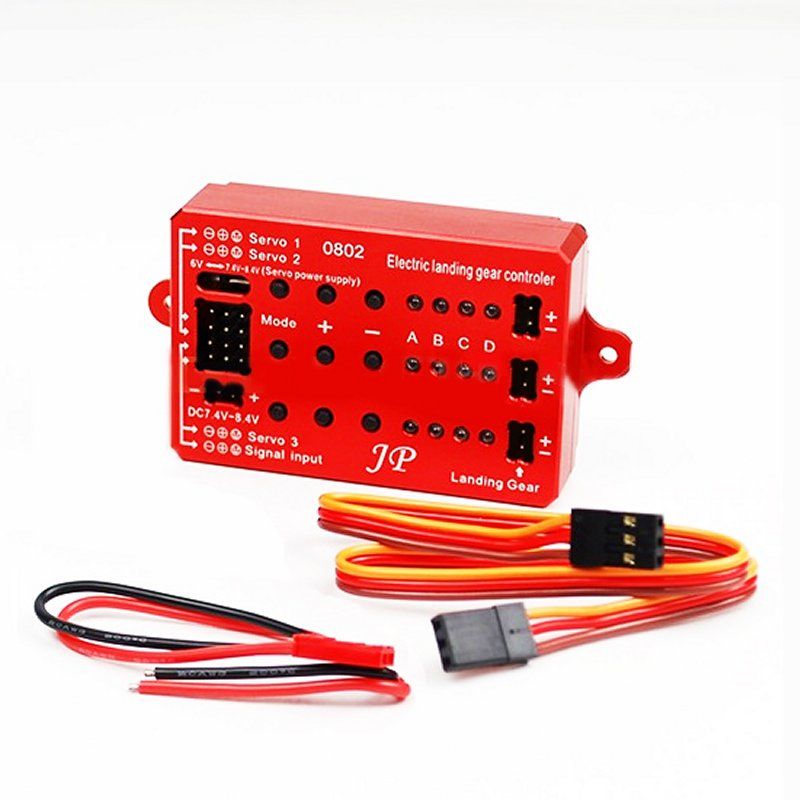

JP Hobby Multifunction Landing Gears and Doors Sequencer V1/V2 for ER-05/08/10/120/150/200
Produktbeschreibung
Marke: JP Hobby
Dieses neue JP Hobby Elektronikmodul dient zur Steuerung der Animationssequenzen einfahrender Fahrwerke sowie der Türen.
Data sheet
| Serial | JP Hobby ER-005 (6kg), JP Hobby ER-008 (9kg), JP Hobby ER-010 (10kg), JP Hobby ER-120 (12kg), JP Hobby ER-150 (20kg), JP Hobby ER-200 (30kg) |
| Sizes: | 63 x 42 x 16mm |
| Weight (gr): | 34.7g |
| Connection: | JR / Graupner / Futaba |
More info
JP Hobby Multifunction Landing Gears and Doors Sequencer V1/V2 for ER-05/08/10/120/150/200
Description
This new JP Hobby electronic module is used to control the animation sequences of retractable landing gear as well as doors. It can also be used with other enclosures equipped with integrated end of limit switches.
The functions of the JP Hobby module are multiple:
Automatic detection of the supply voltage
Adjusting the supply voltage of the servos actuating the gear doors
Adjusting the direction of rotation of the servos actuating the gear doors
Mode selection:
- 1: Opened gear doors when the landing gear is out
- 2: Closed gear doors when the landing gear is out
This controller can be used for either bicycles or tricycles gears systems from JP Hooby.
Specifications
- Dimensions: 63x42x16mm
- Voltage range: 7.4-8.4V
- Weight: 34.7
